TaylorMade Qi HL irons (2024 archive edition)
Qi HL irons from TaylorMade’s 2024 archive sheet, with a 30° 7-iron and 44.5° pitching wedge.
Loft, lie & length chart
Length row from the chart image linked in the 2024 column of TaylorMade’s product-specs archive, in inches.
| Club | Loft (°) | Lie (°) | Length (in) |
|---|---|---|---|
| 5 | 23.5 | 62 | 38.5 |
| 6 | 26.5 | 62.5 | 37.88 |
| 7 | 30 | 63 | 37.25 |
| 8 | 34 | 63.5 | 36.75 |
| 9 | 38.5 | 64 | 36.25 |
| PW | 44.5 | 64.5 | 35.75 |
| AW | 49 | 64.5 | 35.5 |
| SW | 54 | 64.5 | 35.5 |
Source: TaylorMade “Qi HL Irons” specification chart image (2024 column of TaylorMade’s product-specs archive). Checked 2026-10-16.
How to identify this generation

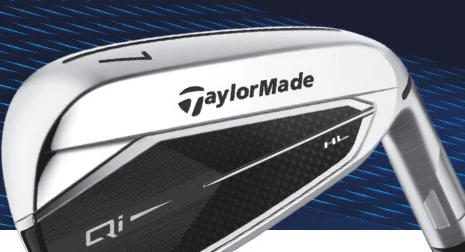

- The Qi’s black carbon-textured insert and Qi logo toward the toe, with a small HL mark at the heel end of the insert.
- The Qi name also appears on these TaylorMade irons; compare their markings before using this chart: Qi (2024 archive edition).
What to notice in the specifications
- Against the Qi sheet, the 5-iron to PW lofts are 1.5 to 2.5° weaker (7-iron 30° against 28°), the lies and 5-iron to AW lengths are the same, and the set starts at the 5-iron.
- The SW is listed at 35.5 in, the same length as the AW and 1/4 in longer than the Qi SW.
Read our loft guide for a worked example of comparing the numbers, and our used iron checklist before relying on a seller's description.
Continue with TaylorMade

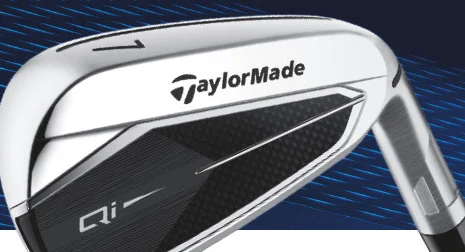

Qi irons (2024 archive edition)
