FAIRWAY WOOD MODEL REFERENCE
TaylorMade RocketBallz (2012 archive edition)
RocketBallz fairway (2012 sheet): 15° to 24° heads, 197 cc to 166 cc, 43.5 to 42.5 inches long.
Published loft options15, 17, 19, 21, 24°
Published lie58, 58, 58.5, 59, 59°
Published head volume197 cc, 195 cc, 174 cc, 166 cc, 166 cc
Documented specifications & build options
Factory sheet linked from TaylorMade’s year-by-year archive, lengths in inches. Men’s/women’s pairs appear only where the sheet labels both.
| Field | Documented value |
|---|---|
| Published loft options | 15, 17, 19, 21, 24 ° |
| Published lie | 58, 58, 58.5, 59, 59 ° |
| Published head volume | 197 cc, 195 cc, 174 cc, 166 cc, 166 cc |
Source: TaylorMade RocketBallz 2012 fairway factory specification sheet. Reviewed 2026-10-05.
Specifications by configuration
| Configuration | Published values |
|---|---|
| 3 · 15° ↗ | Loft: 15 ° Handedness: RH / LH Lie: 58 ° Head volume: 197 cc Length: 43.5 in |
| HL 3 · 17° ↗ | Loft: 17 ° Handedness: RH only Lie: 58 ° Head volume: 195 cc Length: 43.5 in |
| 5 · 19° ↗ | Loft: 19 ° Handedness: RH / LH Lie: 58.5 ° Head volume: 174 cc Length: 43 in |
| 7 · 21° ↗ | Loft: 21 ° Handedness: RH / LH Lie: 59 ° Head volume: 166 cc Length: 42.5 in |
| 9 · 24° ↗ | Loft: 24 ° Handedness: RH only Lie: 59 ° Head volume: 166 cc Length: 42.5 in |
Identifying the right model

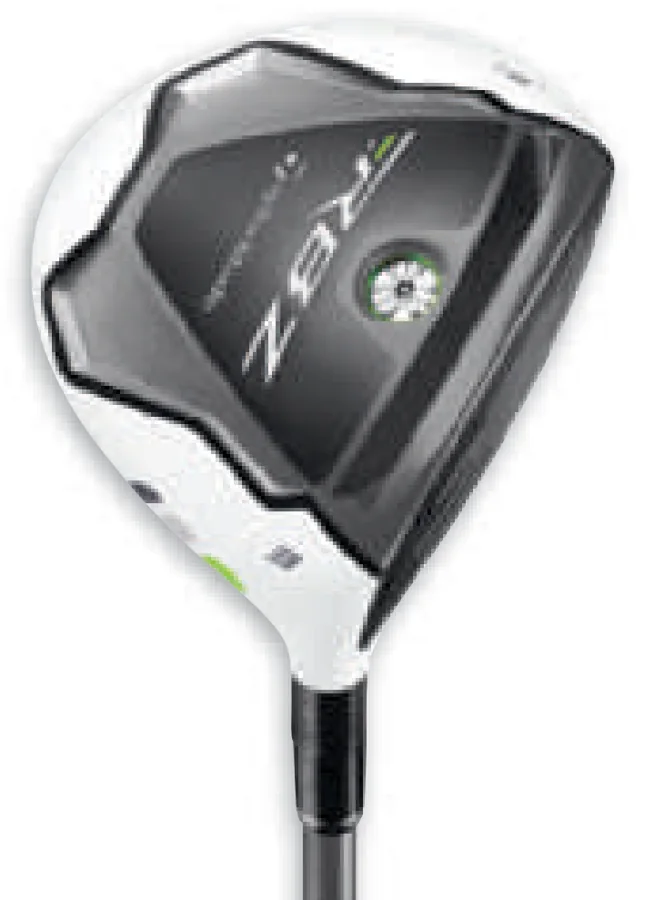

- The photo shows large RBZ lettering running diagonally across a dark grey sole panel, with a round screw weight ringed in green beside it; the rest of the head is white.
- The sheet describes a white crown and a black face.
What to check before using the reference
- Stock build on the sheet: Matrix XCON 5 shaft in X, S, R and M flexes, TM 360 Lite grip and a D4 swingweight at every loft. The HL 3 (17°) and the 9-wood (24°) are listed right-handed only.
- The separate 2012 RocketBallz Tour fairway sheet lists different heads: TS 13°, 3 14.5° and 5 18°, at 171 cc, 172 cc and 153 cc.
- The 2013 RBZ Stage 2 fairway sheet lists smaller heads at the shared lofts (175 cc at 3/15°, 176 cc at HL 3/17°, 155 cc at 5/19°), with 59° to 59.5° lies and a D5 swingweight.
Checking a club you own? These are the maker's published figures for an original build, not measurements of your club, and a source date is not the year it was made. Bending, reshafting or a hosel adjustment changes loft, lie and length, so identify the head by its own markings and have a fitter measure it when its history is unclear.
Continue exploring fairway woods

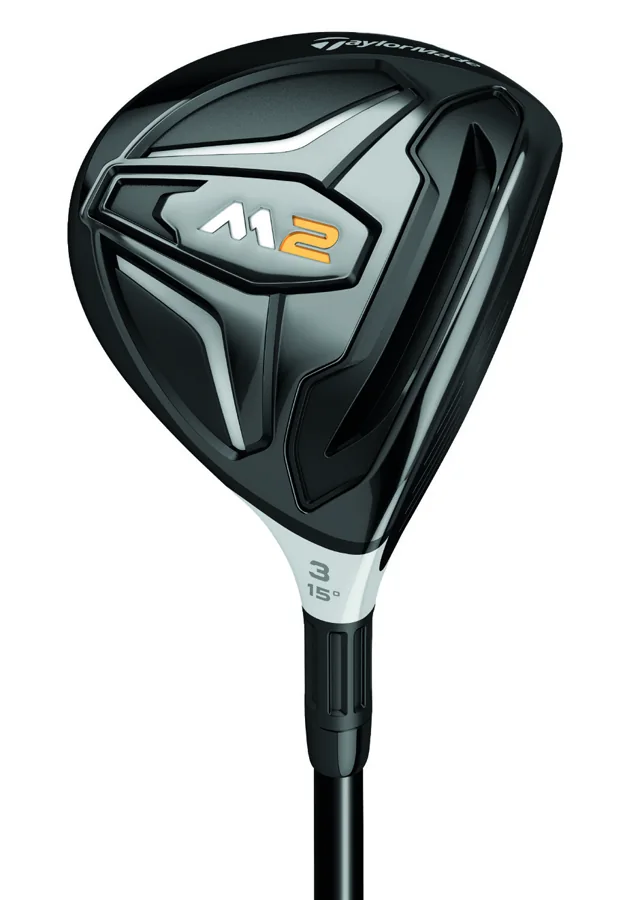

TaylorMadeFairway wood
M2 · 2016 archive edition
M2 fairway (2016 sheet): 15° to 24° heads, 156 cc to 133 cc.
15, 16.5, 18, 21, 24° Published loft optionsModel reference

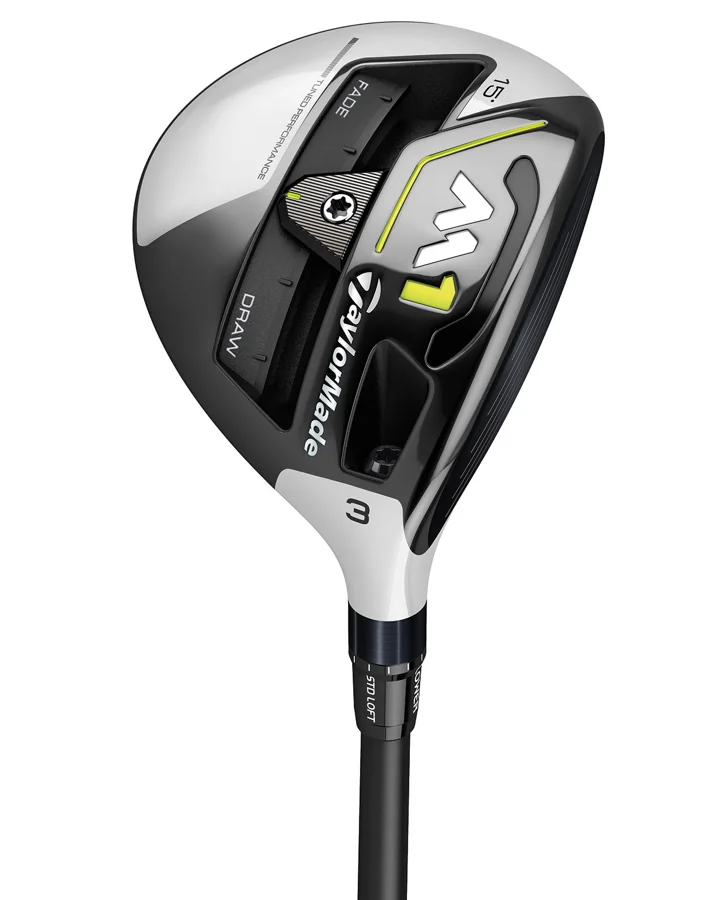

TaylorMadeFairway wood
M1 · 2017 archive edition
M1 fairway (2017 sheet): 15° (150 cc), 17° (151 cc) and 19° (132 cc) heads.
15, 17, 19° Published loft optionsModel reference

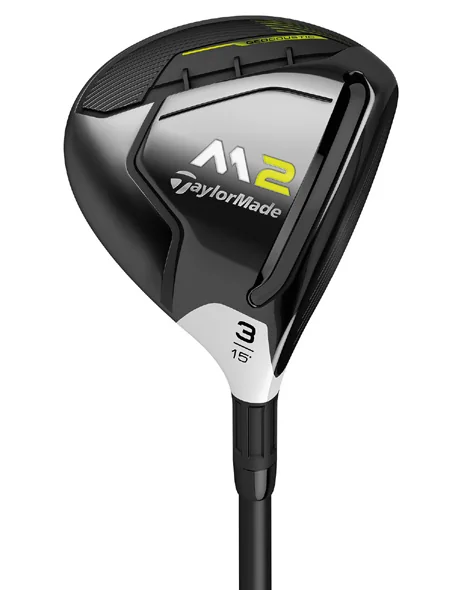

TaylorMadeFairway wood
M2 · 2017 archive edition
M2 fairway (2017 sheet): 15° to 24° heads, 175 cc to 145 cc.
15, 16.5, 18, 21, 24° Published loft optionsModel reference

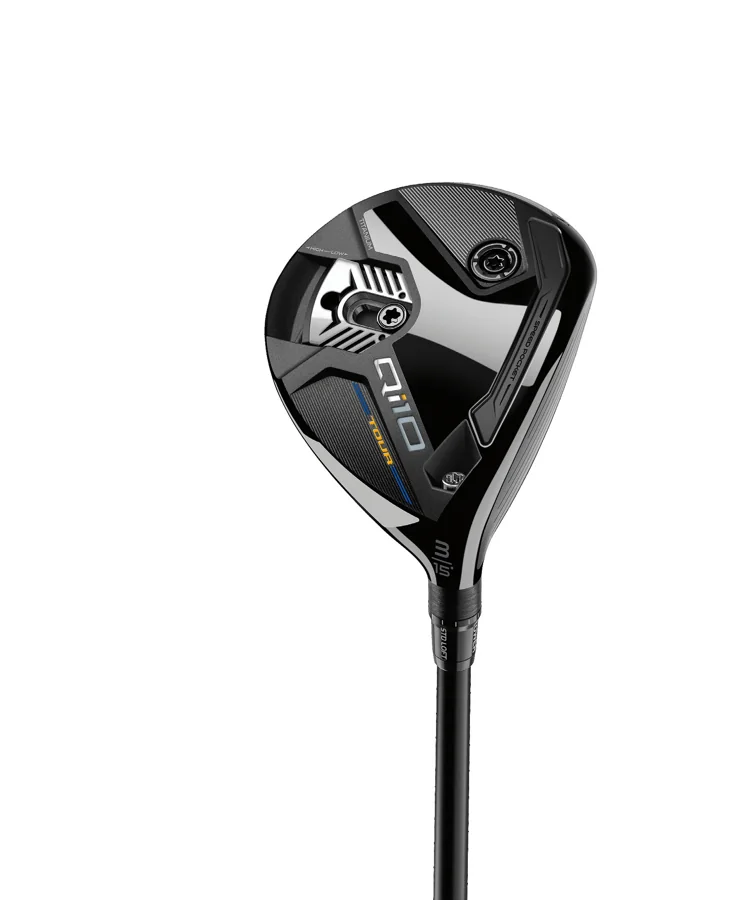

TaylorMadeFairway wood
