TaylorMade R9 irons (2009 archive edition)
R9 irons from TaylorMade’s 2009 archive sheet, with a 32° 7-iron and 46° pitching wedge.
Loft, lie & length chart
Steel length column from the sheet linked in the 2009 column of TaylorMade’s product-specs archive, in inches.
| Club | Loft (°) | Lie (°) | Length (in) |
|---|---|---|---|
| 3 | 20 | 61 | 38.75 |
| 4 | 22 | 61.5 | 38.25 |
| 5 | 25 | 62 | 37.75 |
| 6 | 28 | 62.5 | 37.25 |
| 7 | 32 | 63 | 36.75 |
| 8 | 36 | 63.5 | 36.25 |
| 9 | 41 | 64 | 35.75 |
| PW | 46 | 64.5 | 35.5 |
| AW | 50 | 64.5 | 35.5 |
| SW | 55 | 64.5 | 35.25 |
Source: TaylorMade “R9 Irons” specification sheet (2009 column of TaylorMade’s product-specs archive). Checked 2026-10-16.
How to identify this generation

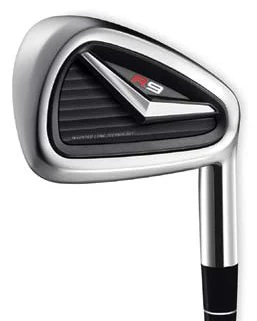

- A black cavity insert crossed by a silver chevron, with a red-and-black R9 badge on the chevron toward the heel.
- The R9 name also appears on these TaylorMade irons; compare their markings before using this chart: R9 TP (2009 archive edition); R9 TP B (2010 archive edition).
What to notice in the specifications
- The sheet describes a Velocity-Control Chamber and wrap-around face in the 3- to 6-irons.
Read our loft guide for a worked example of comparing the numbers, and our used iron checklist before relying on a seller's description.
Continue with TaylorMade
R9 TP irons (2009 archive edition)
R9 TP irons from TaylorMade’s 2009 archive sheet, with a 35° 7-iron and 47° pitching wedge.

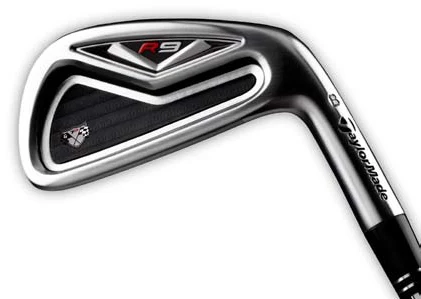

R9 TP B irons (2010 archive edition)
