TaylorMade r7 XD irons (2005 archive edition)
r7 XD irons from TaylorMade’s 2005 archive sheet, with a 30° 7-iron and 44° pitching wedge.
Loft, lie & length chart
Steel length column from the sheet linked in the 2005 column of TaylorMade’s product-specs archive, in inches.
| Club | Loft (°) | Lie (°) | Length (in) |
|---|---|---|---|
| 3 | 19 | 61 | 38.75 |
| 4 | 21 | 61.5 | 38.25 |
| 5 | 23 | 62 | 37.75 |
| 6 | 26 | 62.5 | 37.25 |
| 7 | 30 | 63 | 36.75 |
| 8 | 34 | 63.5 | 36.25 |
| 9 | 39 | 64 | 35.75 |
| PW | 44 | 64.5 | 35.5 |
| AW | 49 | 64.5 | 35.25 |
| SW | 54 | 64.5 | 35 |
| LW | 59 | 64.5 | 34.5 |
Source: TaylorMade “r7 XD Irons” specification sheet (2005 column of TaylorMade’s product-specs archive). Checked 2026-10-16.
How to identify this generation

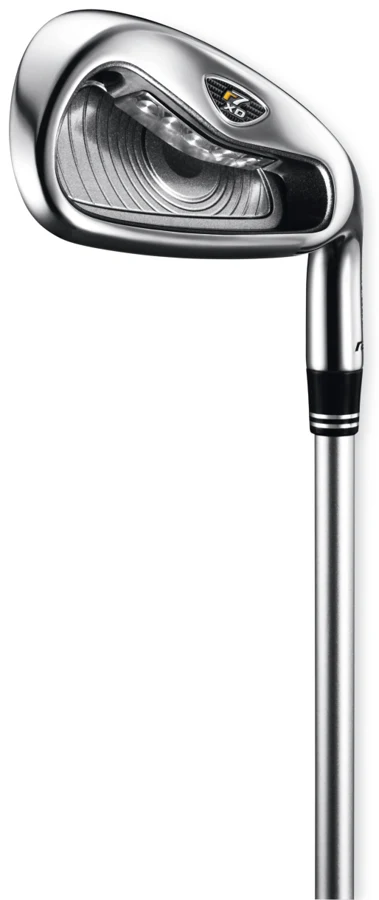

- A deep chrome cavity with concentric ridges around its middle and a black-and-gold r7 badge at the top of the cavity toward the heel; no weight ports.
- The r7 name also appears on these TaylorMade irons; compare their markings before using this chart: r7 CGB MAX (2005 archive edition); r7 TP, r7, r7 Draw (2006 archive edition).
What to notice in the specifications
- The LW is marked right-hand men’s only.
- TaylorMade’s r7 CGB MAX (2005) sheet lists exactly the same lofts, lies and lengths for a different head.
Read our loft guide for a worked example of comparing the numbers, and our used iron checklist before relying on a seller's description.
Continue with TaylorMade

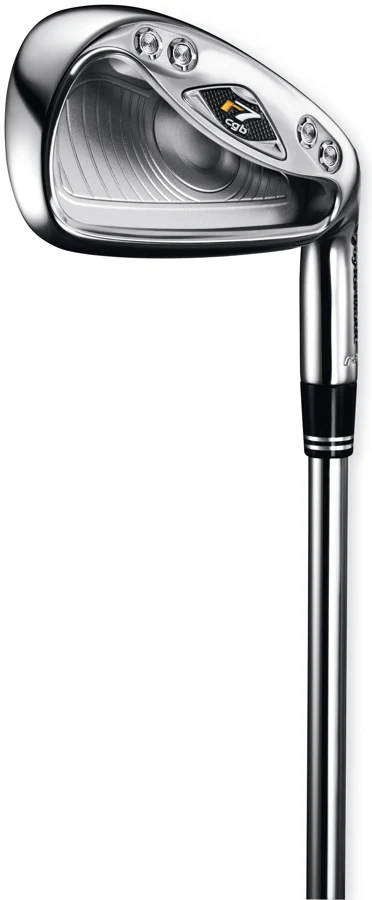

r7 CGB MAX irons (2005 archive edition)
r7 CGB MAX irons from TaylorMade’s 2005 archive sheet, with a 30° 7-iron and 44° pitching wedge.

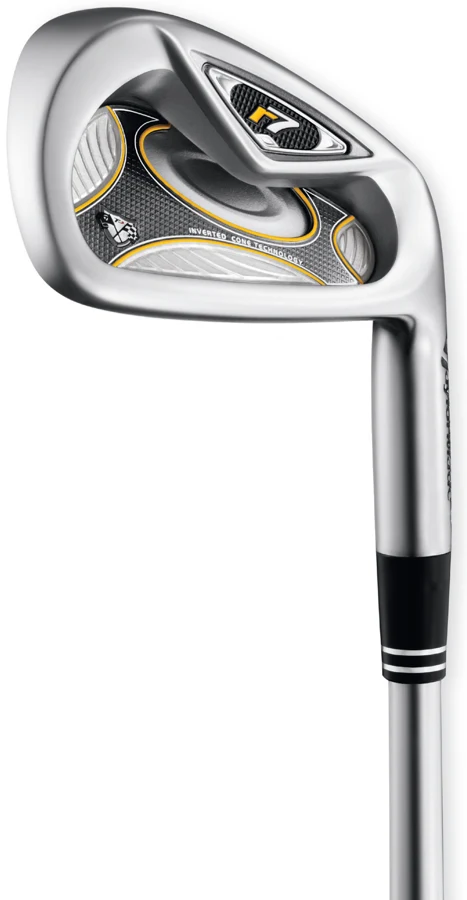

r7 TP irons (2006 archive edition)
r7 TP irons from TaylorMade’s 2006 archive sheet, with a 35° 7-iron and 47° pitching wedge.

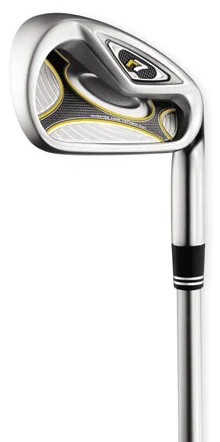

r7 irons (2006 archive edition)
r7 irons from TaylorMade’s 2006 archive sheet, with a 32° 7-iron and 45° pitching wedge.

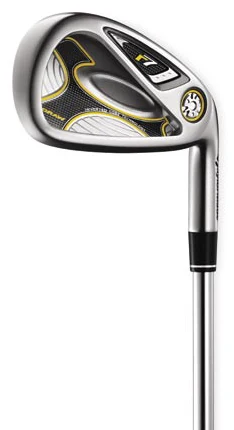

r7 Draw irons (2006 archive edition)
