TaylorMade r5 XL irons (2006 archive edition)
r5 XL irons from TaylorMade’s 2006 archive sheet, with a 33° 7-iron and 45° pitching wedge.
Loft, lie & length chart
Steel length column from the sheet linked in the 2006 column of TaylorMade’s product-specs archive, in inches.
| Club | Loft (°) | Lie (°) | Length (in) |
|---|---|---|---|
| 3 | 20 | 61 | 38.75 |
| 4 | 23 | 61.5 | 38.25 |
| 5 | 26 | 62 | 37.75 |
| 6 | 29 | 62.5 | 37.25 |
| 7 | 33 | 63 | 36.75 |
| 8 | 37 | 63.5 | 36.25 |
| 9 | 41 | 64 | 35.75 |
| PW | 45 | 64.5 | 35.5 |
| AW | 50 | 64.5 | 35.5 |
| SW | 55 | 64.5 | 35.25 |
| LW | 60 | 64.5 | 35 |
Source: TaylorMade “r5 XL Irons” specification sheet (2006 column of TaylorMade’s product-specs archive). Checked 2026-10-16.
How to identify this generation

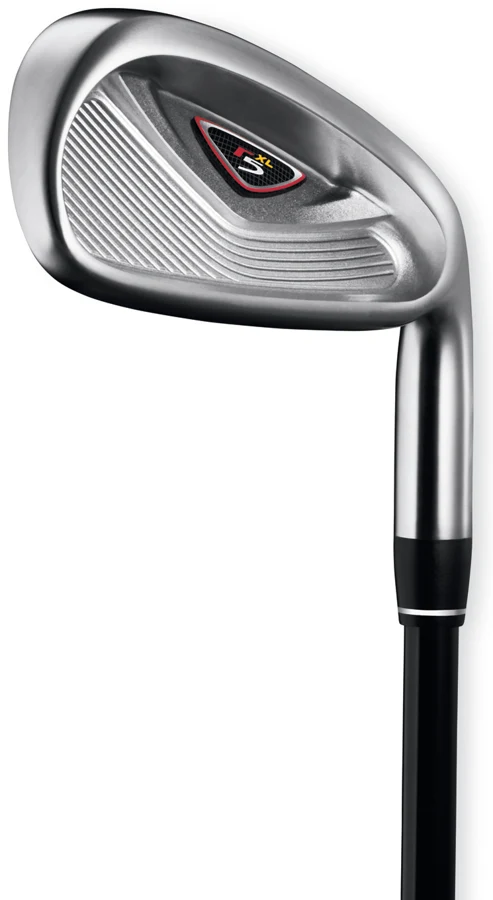

- A chrome cavity with a red-and-black r5 badge high on the heel side and horizontal lines across the lower cavity.
What to notice in the specifications
- The sheet offers the AW, SW and LW separately in steel with a wedge flex (the SW also in graphite); the LW is right-hand men’s only.
Read our loft guide for a worked example of comparing the numbers, and our used iron checklist before relying on a seller's description.
